Challenge 2 - Part 1

Here’s the first part of Challenge 2! Start a timer and model the part below.

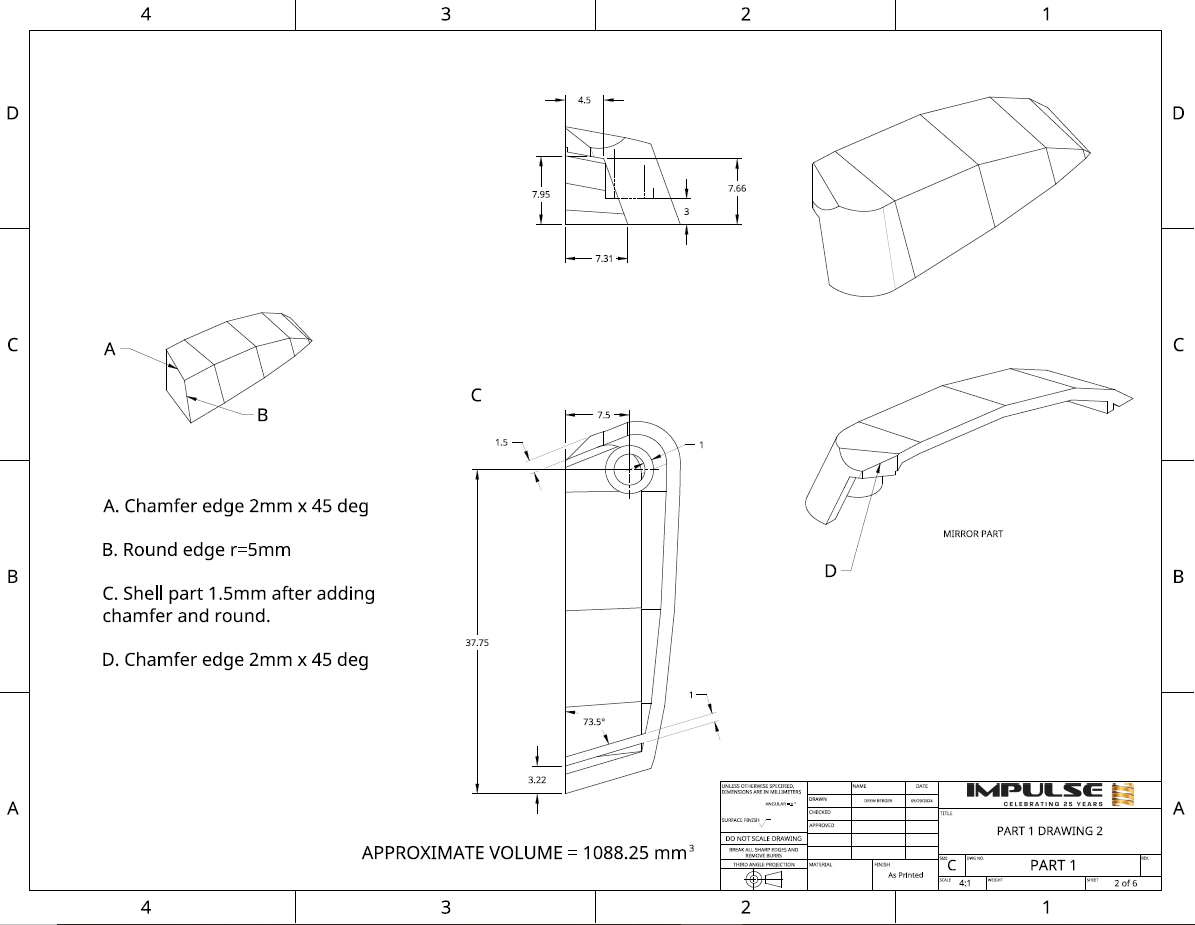

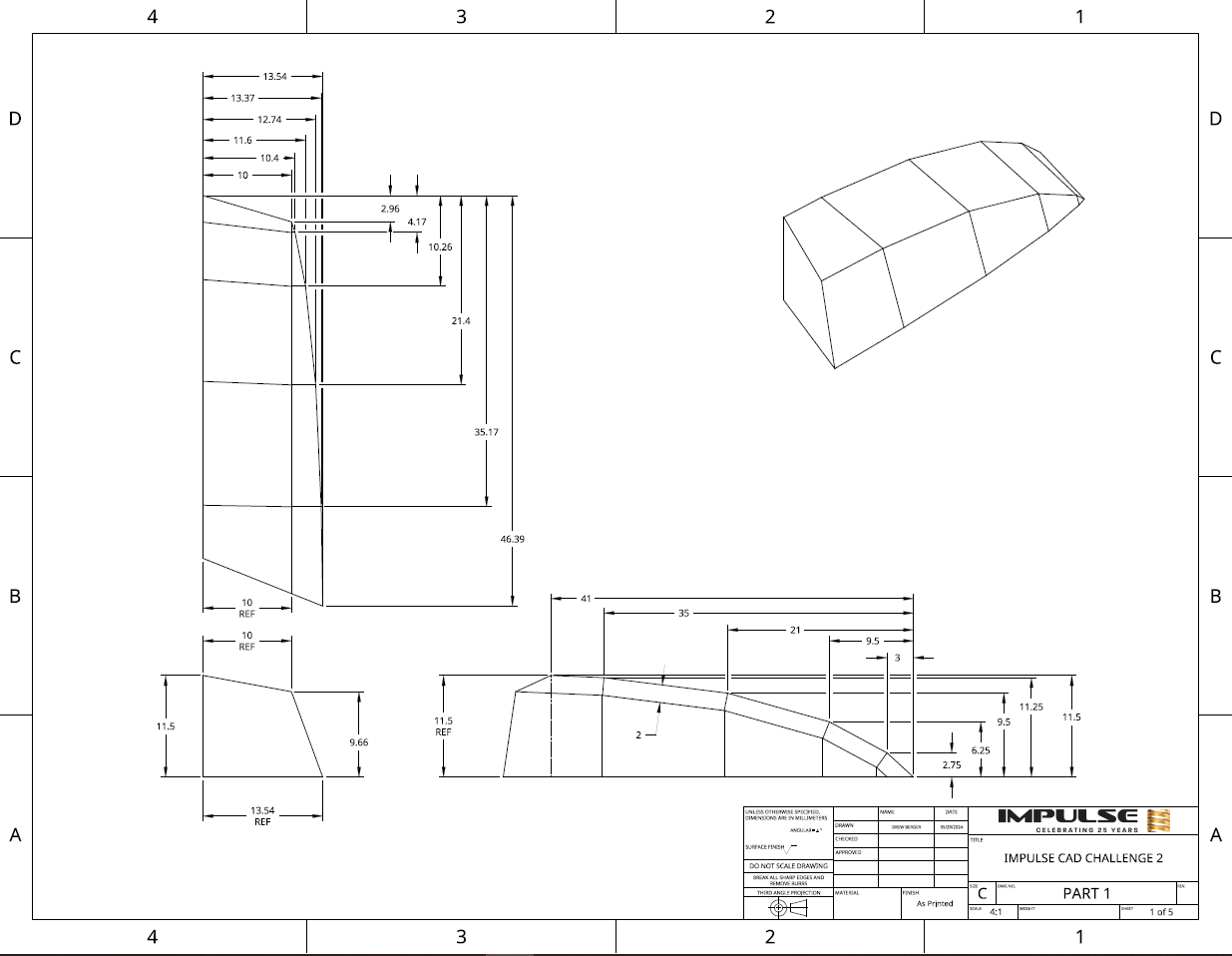

The first sheet will get you the initial shape, and sheet two will get you the final details.

If you’re willing, once you complete the design, please create a post on LinkedIn and tag @ImpulseProductDevelopment. Tell us how long it took you to design the part, what software you used, what you think we’re designing.

Also, if you print the parts and put them together, post a picture and tag us!

Thanks for playing along!

Having trouble seeing things? Use the sign-up form on the main page, and we’ll send you a PDF.

Don’t want to post on LinkedIn? Will you tell us how you did using this form?
